Ansys ModelCenter — Model-Based Systems Engineering (MBSE) Integration

Ansys ModelCenter is an enterprise platform for simulation workflow automation and multidisciplinary design optimization (MDO). It enables engineers to integrate disparate simulation tools into a unified, automated process, bridging the gap between systems architecture and detailed engineering analysis.

• Automated Workflow Orchestration: Connect tools from Ansys and third-party vendors (CAD, CAE, Excel, MATLAB) into a repeatable, automated execution chain.

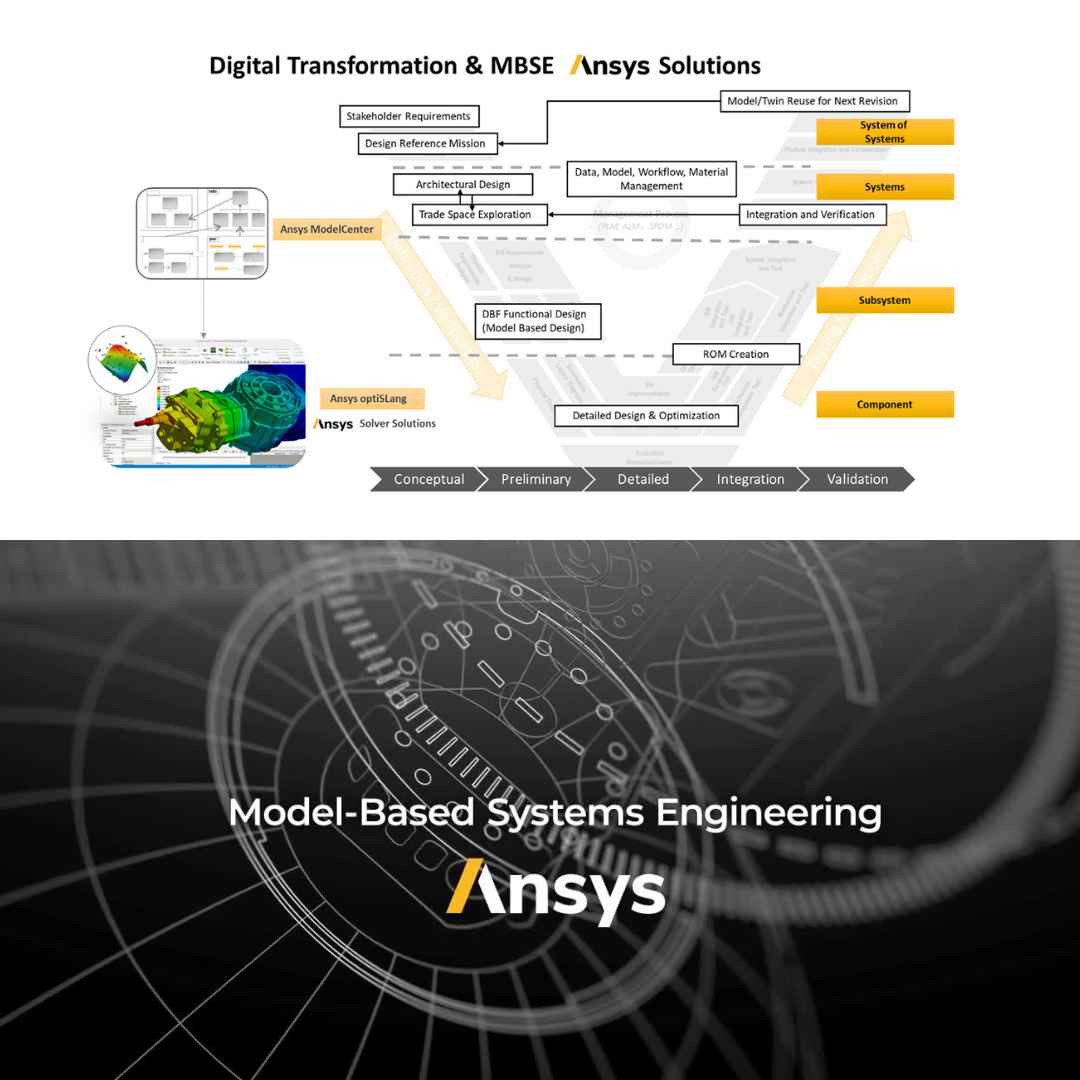

• Systems Architecture Integration: Link descriptive SysML models (from Cameo or MagicDraw) to analytical simulation models, ensuring the "Digital Thread" remains unbroken from requirements to validation.
• Rapid Trade Studies: Execute thousands of design iterations automatically to identify optimal system configurations and perform "What-If" analysis in a fraction of the time.

Technical Performance & Connectivity

• Vendor-Agnostic Integration: Utilize a vast library of wrappers to connect virtually any software tool, including legacy code, Python scripts, and specialized in-house solvers.
• Parallel Execution Engine: Leverage HPC resources to run distributed simulation workflows, significantly accelerating large-scale design space exploration.
• Requirements Traceability: Verify system-level requirements against simulation results in real-time, ensuring compliance with mission-critical specifications.

Why Choose Ansys ModelCenter?

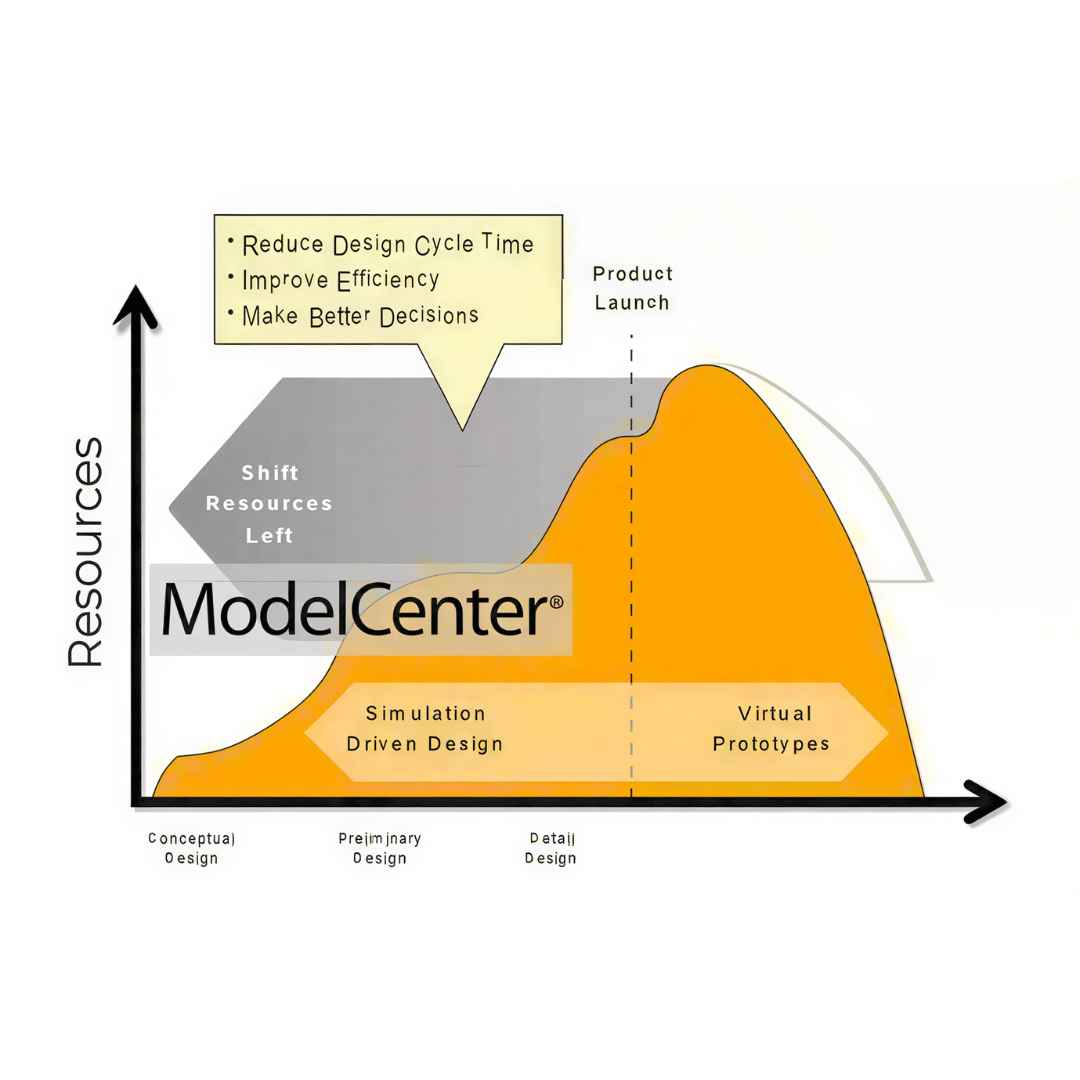

ModelCenter eliminates manual data transfer and "siloed" engineering. By automating the integration of complex systems, organizations can explore a wider design space, reduce human error, and accelerate the development of sophisticated aerospace, defense, and automotive systems.

Advanced Capabilities

• ModelCenter Analysis Server: Centrally manage and share simulation assets across the enterprise to promote model reuse and standardization.
• Sensitivity & Reliability Analysis: Identify which design variables have the greatest impact on system performance and assess the probability of failure.
• Cloud & On-Premise Flexibility: Deploy workflows across local workstations, internal clusters, or cloud environments to maximize compute ROI.

License & Implementation

Available in modular versions: ModelCenter Integrate for workflow automation and ModelCenter Explore for design optimization. Contact our MBSE specialists to architect your integrated digital engineering environment.

Frequently Asked Questions

What is Ansys ModelCenter?

Ansys ModelCenter is an MBSE and Multidisciplinary Design Optimisation (MDO) platform that automates complex engineering workflows, connects SysML system models with analytical solvers, and executes trade studies to validate requirements across engineering disciplines.

What is Multidisciplinary Design Optimisation (MDO)?

MDO is a systems engineering methodology for optimising complex products across multiple interacting disciplines such as structures, aerodynamics, and propulsion simultaneously rather than sequentially, finding the best overall system design more efficiently.

Does Ansys ModelCenter support SysML-based MBSE workflows?

Yes. ModelCenter integrates with SysML-based MBSE environments, enabling systems architects to link high-level model requirements and system architecture directly to physics-based simulation results and analytical validation outputs.
