Ansys Lumerical MODE - Enterprise Optical Waveguide and Coupler Design Software
Ansys Lumerical MODE is a comprehensive optical waveguide design environment. It models waveguide and coupler performance with three solvers: a finite difference eigenmode (FDE) solver, a 2.5D variational FDTD (varFDTD) solver and a bidirectional eigenmode expansion (EME) solver.
Together they handle large planar structures and long propagation lengths, with accurate spatial field, modal frequency and overlap analysis.
Ansys Lumerical MODE 2026 R1
- การบูรณาการ Synopsys OptoCompiler:OptoCompiler ขณะนี้สามารถเชื่อมต่อโดยตรงกับLumerical FDTD, MODE และ Multiphysics เพื่อสร้างแบบจำลองฟิสิกส์เชิงแสงจากอุปกรณ์สู่วงจร (design)
- PyLumerical:ระบบอัตโนมัติด้วย Python สำหรับ FDTD, MODE, Multiphysics และINTERCONNECT ที่เข้ากันได้กับระบบนิเวศ PyAnsys.
อ่านเพิ่มเติม:จุดเด่นของ Ansys Lumerical MODE 2026 R1
แอนซิส ลูเมอริคอล เอ็นเตอร์ไพรส์
The full Lumerical suite: FDTD, MODE, INTERCONNECT, CML Compiler and the multiphysics solvers. Each job includes 4 CPU cores and 4 GPU SMs, and scales with Ansys HPC Packs.
Better suited to multi-GPU systems and HPC workflows.
โหมด Ansys Lumerical
A standalone MODE licence for waveguide and coupler design.
FDE, varFDTD and EME Solvers

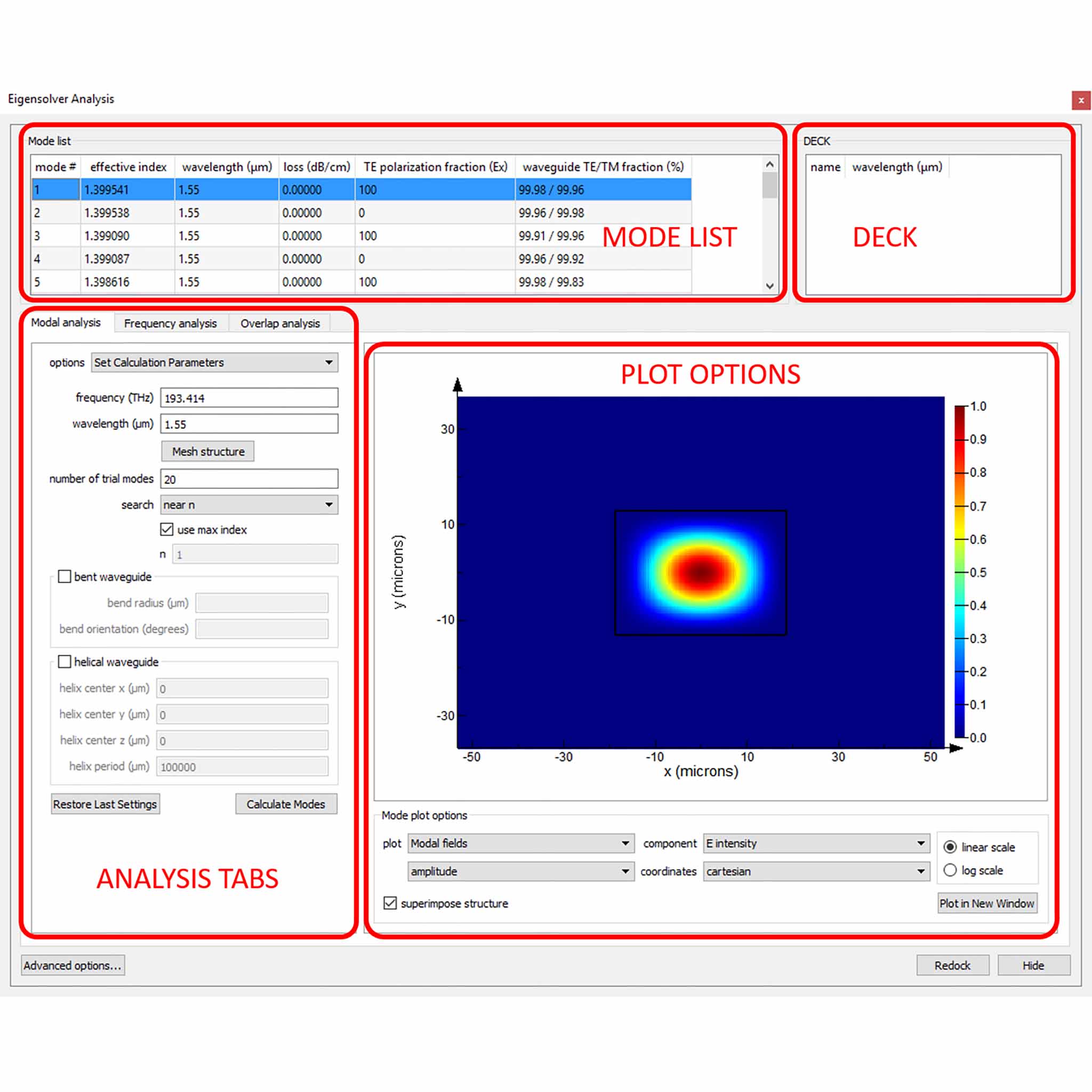

FDE characterises straight and bent waveguides, varFDTD simulates broadband light propagation in planar components, and EME efficiently models long tapers and propagation lengths. A conformal mesh maintains accuracy with high-index-contrast and dispersive materials.
Foundry Layer Builder, Magneto-Optics and Multiphysics Profiles
A foundry-compatible automated layer builder sets up process stacks, magneto-optical waveguides can be analysed, and spatially varying temperature and charge density profiles import from multiphysics solvers.
From Waveguide Parameters to Circuit Models
Waveguide parameters extracted in MODE create waveguide elements in INTERCONNECT and feed compact model generation in CML Compiler.
Common Waveguide Design Consultation Topics
- Waveguide cross-sections: mode profiles and effective index.
- Couplers and tapers: coupling efficiency and mode conversion.
- Bend loss: radius and loss trade-offs.
- Fibre-to-chip coupling: edge couplers and spot-size converters.
มีโครงการที่ไม่ได้อยู่ในรายชื่อนี้หรือไม่? ส่งข้อมูลรายละเอียดมาให้เราครับ หากการศึกษานั้นต้องการความรู้เฉพาะทาง เราจะใช้เครือข่ายพันธมิตร Ansys ที่กว้างขวางของเราเพื่อสนับสนุน
สินค้าที่เกี่ยวข้อง
- Ansys Lumerical FDTD: full 3D time-domain simulation for arbitrary structures.
- Ansys Lumerical INTERCONNECT: circuit simulation using MODE waveguide parameters.
- Ansys Lumerical CML Compiler: compact models built from MODE data.
Ansys Lumerical MODE FAQ
Can we trial Lumerical MODE?
Yes. Ansys offers a free 30-day MODE trial.
