Ansys AVxcelerate Headlamp — High-Fidelity Photometric Lighting Simulation

Ansys AVxcelerate Headlamp is a specialized simulation platform for the design, testing, and virtual validation of automotive lighting systems. It provides a physically accurate environment to evaluate headlamp performance, sensor-driven adaptive lighting (ADB), and night-driving safety protocols without the need for expensive nighttime physical track tests.

• Photometric Accuracy: Utilize high-fidelity light source models (LED, Matrix LED, Laser) and spectral material properties to simulate realistic beam patterns and ground illumination.
• Adaptive Driving Beam (ADB) Validation: Test and optimize smart lighting algorithms that dynamically adjust beam patterns to prevent glare for oncoming traffic while maximizing driver visibility.

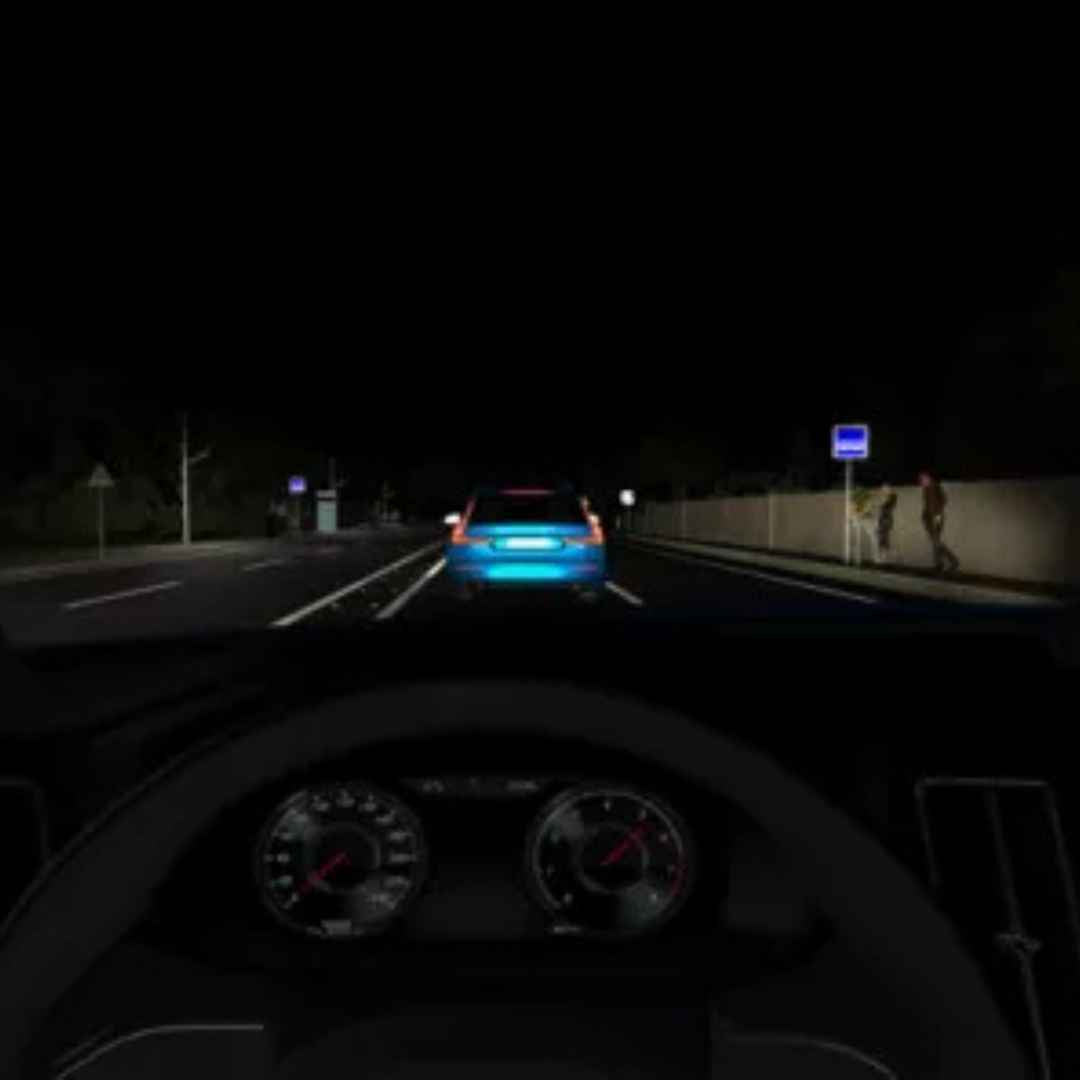

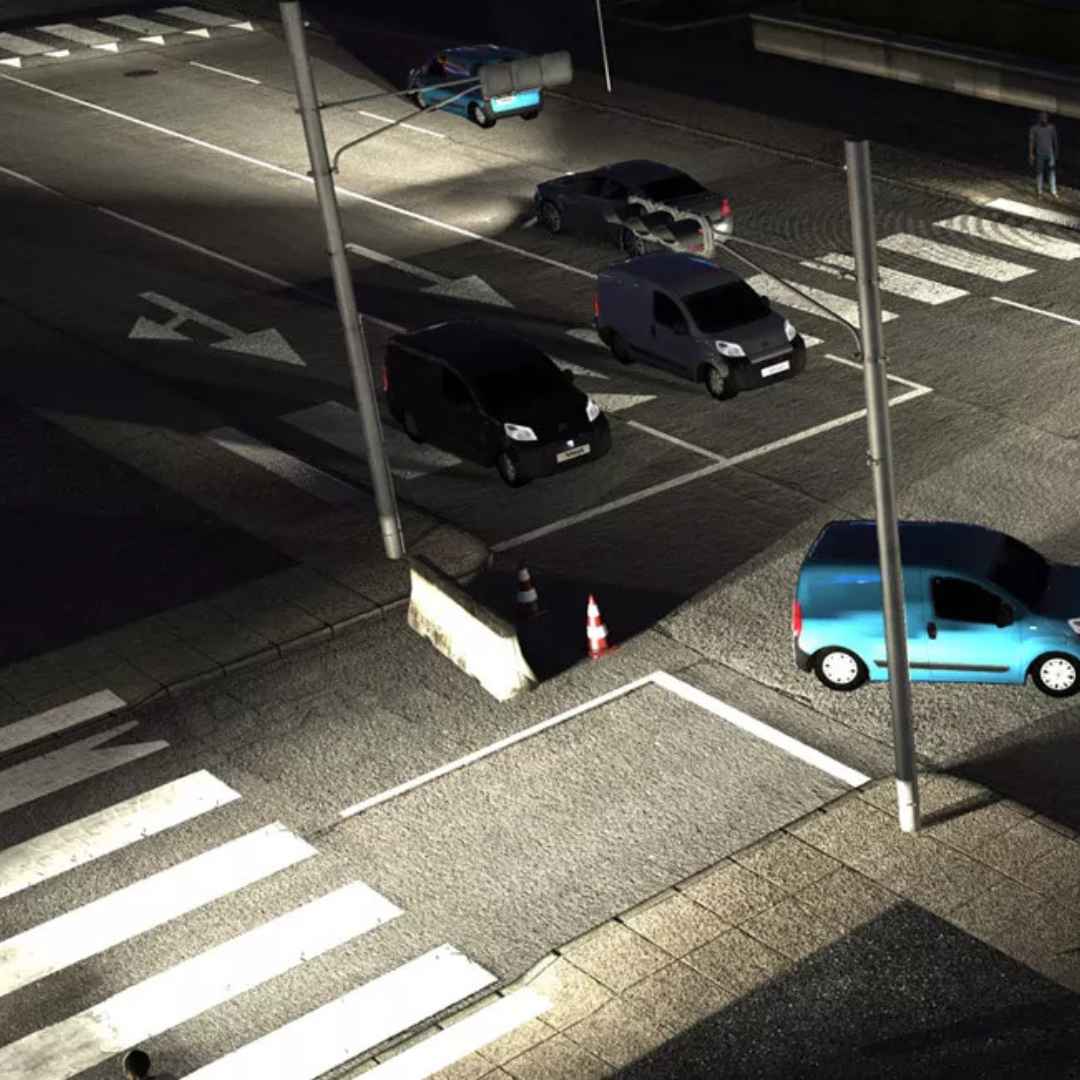

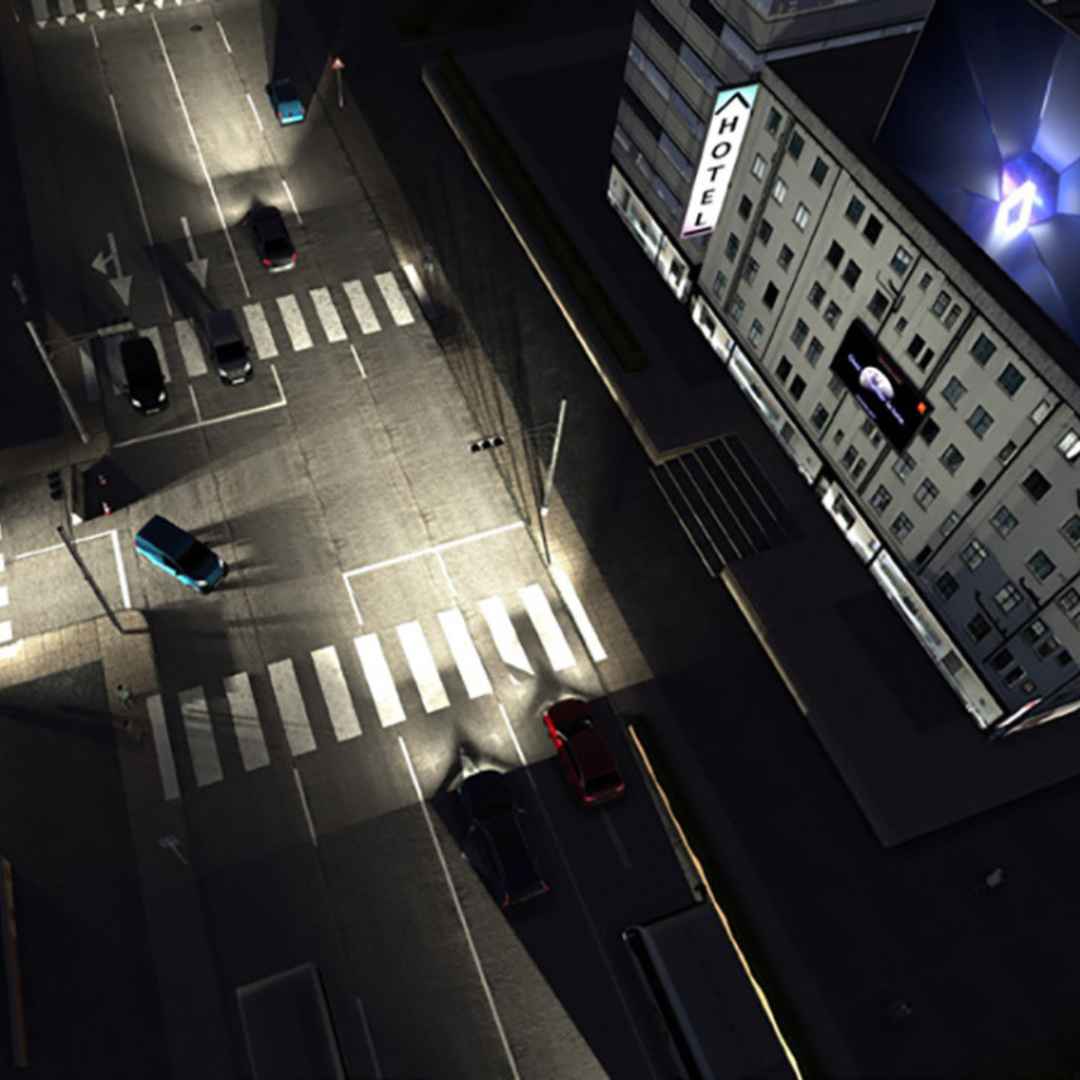

• Dynamic Driving Scenarios: Evaluate headlamp performance in real-time across diverse road geometries, weather conditions (fog, rain, snow), and complex urban environments.

Technical Performance & Compliance

• Real-Time Optical Physics: GPU-accelerated ray tracing for instantaneous visualization of light propagation, reflections, and scattering from road surfaces and retroreflective signs.
• Virtual IIHS & NCAP Testing: Pre-validate vehicle lighting safety ratings according to IIHS (Insurance Institute for Highway Safety) and Euro NCAP protocols in a repeatable virtual environment.
• Digital Twin Integration: Connect to Ansys SPEOS to import high-precision optical designs into a dynamic driving context, ensuring the "Digital Thread" from component to system level.

Why Engineers Choose AVxcelerate Headlamp?

By shifting from physical prototypes to virtual "Night Drives," OEMs and Tier-1 lighting suppliers can reduce development cycles by months. It allows for the safe exploration of "what-if" scenarios, such as sensor failure or extreme atmospheric degradation, which are difficult to replicate on-track.

Advanced Capabilities

• Sensor-Lighting Synergy: Co-simulate with ADAS sensors to validate how smart lighting affects camera-based object detection and lane-keeping performance.
• Dynamic Leveling & Cornering: Analyze the impact of vehicle dynamics (pitch, roll, and steering) on beam stability and adaptive cornering light (AFS) responsiveness.
• Human-Centric Design: Evaluate driver comfort and visual fatigue by simulating glare (disability and discomfort) in high-traffic nighttime scenarios.

License & Integration

Ansys AVxcelerate Headlamp is available as a modular solution or as part of the broader AVxcelerate suite. It supports integration with leading driving simulators and HIL test benches. Contact our lighting specialists for a technical demonstration.

Frequently Asked Questions

What is Ansys AVxcelerate Headlamp?

Ansys AVxcelerate Headlamp is a virtual simulation module for automotive lighting and Adaptive Driving Beam (ADB) design, enabling engineers to evaluate photometric performance and achieve IIHS and NCAP headlight safety ratings in a real-time night driving simulation environment.

What is Adaptive Driving Beam (ADB) simulation in automotive engineering?

ADB simulation tests intelligent headlamp systems that automatically adjust light distribution to maximise road illumination without blinding oncoming traffic; a key criterion in IIHS headlight safety ratings and increasingly required by global lighting regulations.

Can Ansys AVxcelerate Headlamp replace physical photometric testing?

Ansys AVxcelerate Headlamp enables virtual pre-validation of automotive lighting performance against IIHS and NCAP standards, significantly reducing the number of costly physical photometric tests required during development and accelerating the regulatory homologation process.
